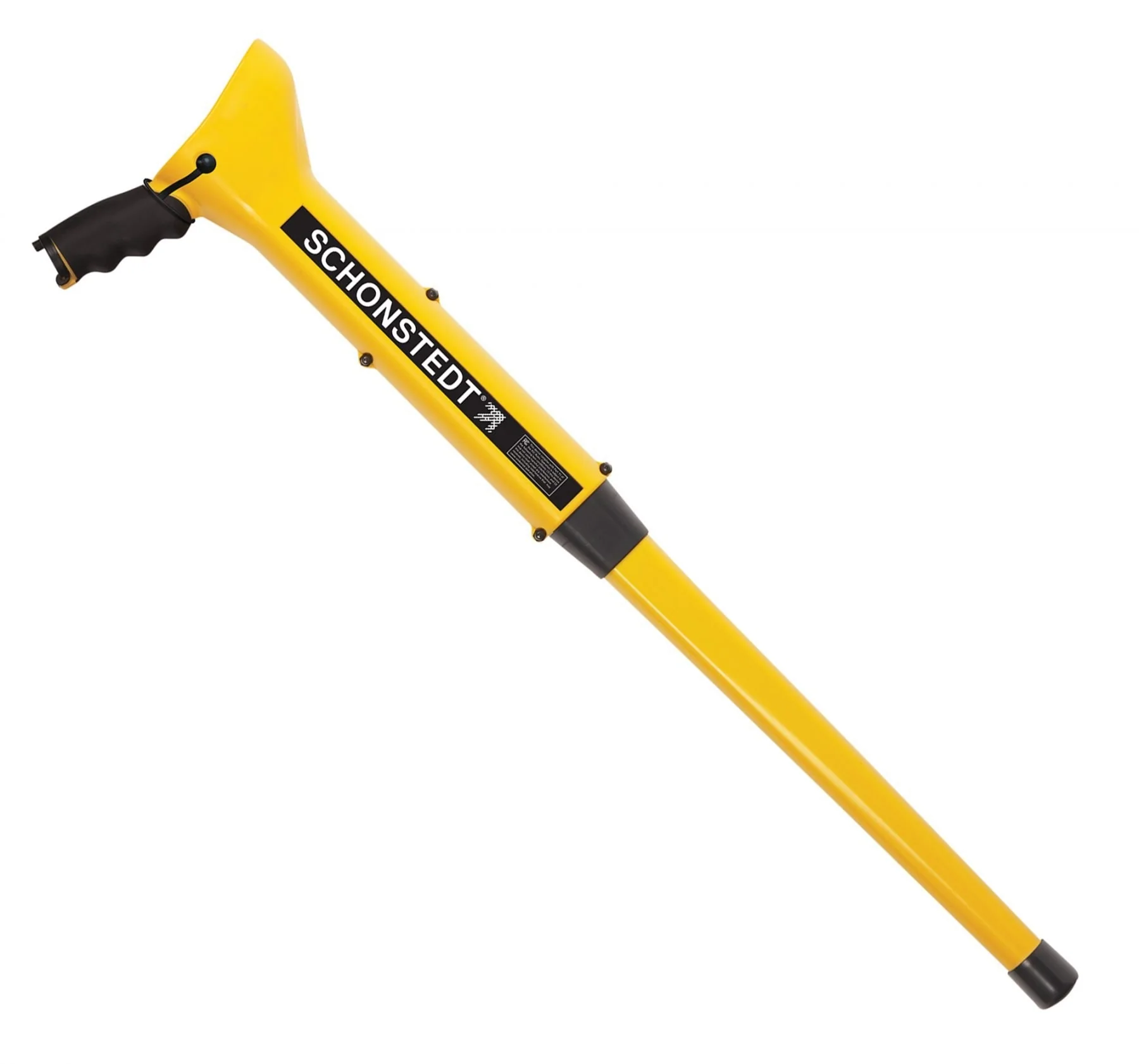

Schonstedt Maggie Magnetic Locator
Schonstedt Maggie Magnetic Locator
Used Across a Wide Range of Applications
The Schonstedt Maggie Magnetic Locator is utilized in various industrial applications, including road construction, land surveying, and more. It is designed for easy detection of ferromagnetic objects such as survey pins. This model is popular in industries like Surveying and Mapping, Construction and Excavation, Contract Locating, Gas and Oil Pipelines, Roads and Transportation, Facilities Management, and Power and Electric. As a magnetic locator, it does not respond to aluminum, brass, or copper. Built with high-performance components and durable production techniques, it withstands tough conditions and has an IP54 rating for dust and water resistance. The device offers three volume levels: muted, medium, and high.
Schonstedt Maggie Magnetic Locator Features
- Highest Sensitivity
- Ergonomic & Durable
- Dust & Water Resistant (Rated IP54)
- Easy access to battery removal
- Expanding bar graph indicates polarity (positive or negative) and relative signal strength
- HeliFlux sensors
- Modular construction and high-performance components
- Includes a soft carrying case and arm strap sling for ease of carrying through rough terrain, hands-free
- 7-year warranty
The Maggie combines the benefits of the GA-52Cx and GA-92XTd models, offering both sensitivity and precision with one-handed operation. It features HeliFlux sensors for optimal performance, detecting only iron and steel objects. Easily locate pipe joints, iron pipes, manhole covers, and other ferrous metal objects with precision. Powered by a 9V alkaline battery, it allows easy battery removal and replacement.
Schonstedt Maggie Specifications

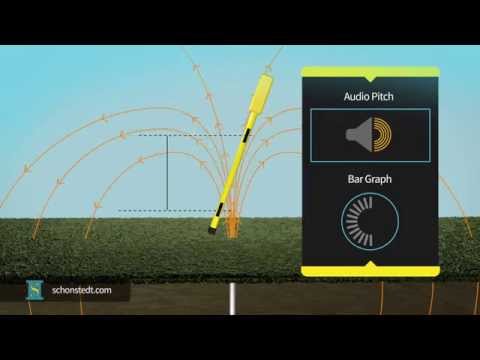

- AUDIO OUTPUT: Signal increases in frequency with gradient field intensity. Idle frequency = 10 Hz
- DISPLAY OUTPUT: Expanding bar graph indicates polarity (positive or negative) and relative signal strength
- BATTERY INDICATOR: 4-segment LCD
- GAIN: 4-Level LCD - Low (L), Medium (M), High (H), Extra High (XH)
- GAIN MEMORY: Gain defaults to Medium when powering off/on
- VOLUME: 3 Levels - Muted, Medium, and High
- INPUT POWER: One 9V Battery (Included and Installed for Immediate Use)
- BATTERY LIFE: 24 Hours (intermittent use)
- OPERATING TEMPERATURE: -13 °F to 140 °F (-25 °C to 60 °C)
- OVERALL LENGTH: 32.5" (83 cm)
- NOMINAL SENSOR SPACING: 20" (50 cm)
- WEIGHT: Approximately 2.6 lbs (1.2 Kg)
- CONSTRUCTION: High impact ABS
- DUST & WATER PROTECTION: Rated IP54

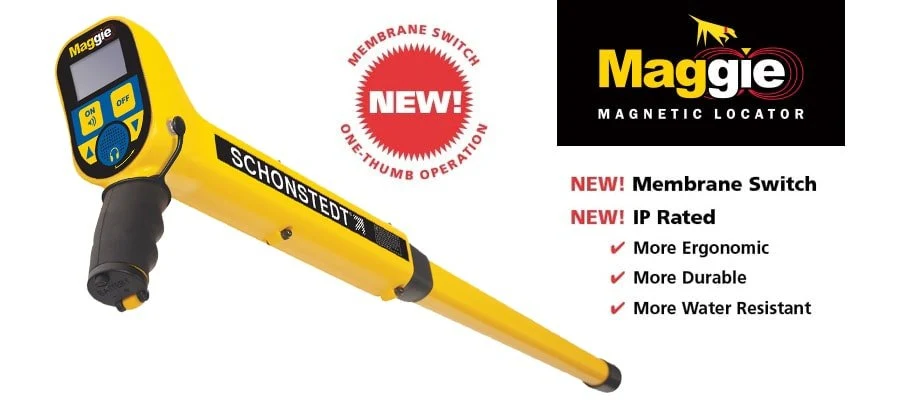

Four audio gain settings are available via the membrane switch, allowing selection from low, medium, high, and extra high gain levels. The device's modular design, high-performance components, and 7-year warranty make it stand out. It weighs approximately 2.6 lbs (1.2 kg) and includes an instruction manual available for download. It ships with a soft case, and related products are shown in the compatible accessories section.
Schonstedt Maggie Standard Equipment:
- Padded Carrying Case with Strap (p/n: MA50000)
- One 9V Battery (in unit)
Why buy your Schonstedt Maggie Magnetic Locator from us?
We are a factory-authorized Schonstedt Distributor, offering industry-leading Pipe and Cable locators and Magnetic detection devices. Our product specialists provide support and help you choose the right model for your needs. We collaborate with Schonstedt to stay updated on their latest products and technologies. Be sure to read our article entitled Schonstedt GA-92XTd Metered Magnetic Locator versus Schonstedt Maggie Magnetic Locator Comparison.
Manual details: Download the instruction manual.
